V-FORCE

V-FORCE Knee Relief (OA) brace is for the medial or lateral compartment.

The correction pressure is built up via the contralateral condyle to relieve the painful compartment (three-point principle). A Varus/Valgus position can be adjusted by means of an adjustable correction pressure. Partially elastic plastic shells ensure a pleasant wearing comfort. Silicone adhesive strips prevent the orthosis from slipping. The polycentric joint allows limitation of extension and flexion.

INDICATIONS

• Bone bruising (post-traumatic bone marrow oedema)
• Conservative/post-operative knee
• Knee arthrosis
• Preoperatively
• Uni-compartmental relief before HTO (brace test)

EFFECTIVENESS / TECHNOLOGY

• Corrective influence on the joint axis in the swing-through phase
• Delay of joint wear
• Increased mobility
• Monolateral orthosis frame for relieving the load on the medial or lateral compartment
• Pain relief
• Extension: 0°, 5°, 10°, 15°, 20°, 25°
• Flexion: 45°, 60°, 75°, 90°
• Polycentric joint, adjustable varus / valgus angle as well as extension and flexion

Only one size, adjustable to a thigh circumference (15 cm above knee joint gap) of minimum 32 cm to maximum 70 cm.

Left leg:

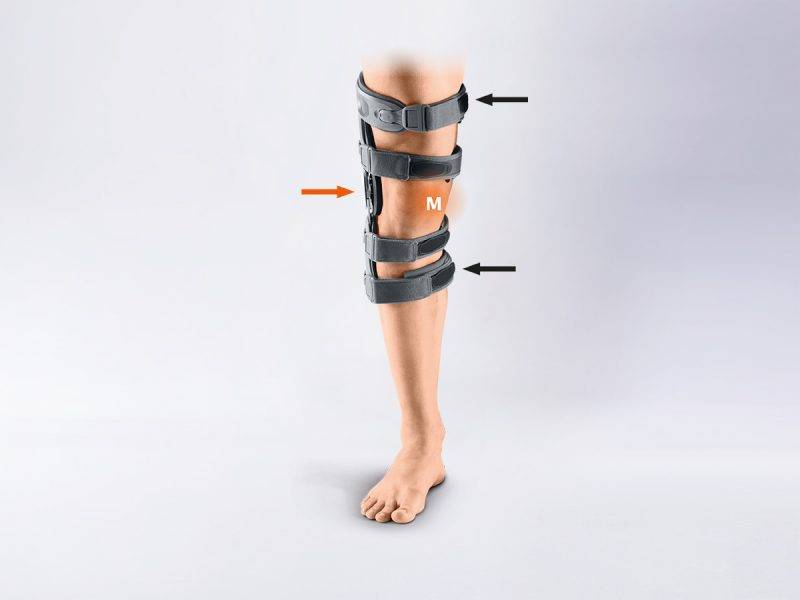

• Medial / varus gonarthrosis, genu varum, O-leg, valgizing mode of action (SKU# MEDI-07750-1)

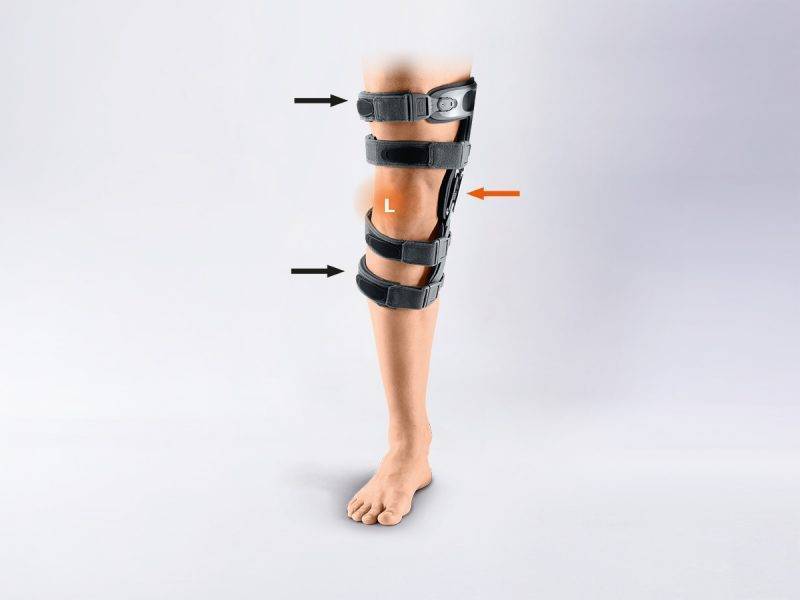

• Lateral / valgus gonarthrosis, genu valgum, X-leg, varisating mode of action (SKU# MEDI-07750-2)

Right leg:

• Medial / varus gonarthrosis, genu varum, O-leg, valgizing mode of action (SKU#MEDI-07750-2)
• Lateral / valgus gonarthrosis, genu valgum, X-leg, varisating mode of action (SKU# MEDI-07750-1)
